Pedestal & Stringer System
(Raised Floor Support Structure)
The Pedestal & Stringer system is the primary supporting structure that ensures the absolute stability and strength of the Raised Access Floor. It consists of height-adjustable pedestals capable of withstanding a maximum Axial Load of up to 15,000 kgf, and interconnecting stringers that significantly enhance overall stability and effectively resist Lateral Forces. This makes it the perfect installation solution for Cleanrooms, Data Centers, and Smart Office buildings.
Key Features & Technical Data
- Finished Floor Height (FFH): 160 mm - 1,500 mm
- Load Capacity (Axial Load): 4,000 - 15,000 kgf
- Material: Aluminum, Steel, or Composite
- Surface Finish: Bare, Electrocoating, Epoxy Powder Coat
Technical Data

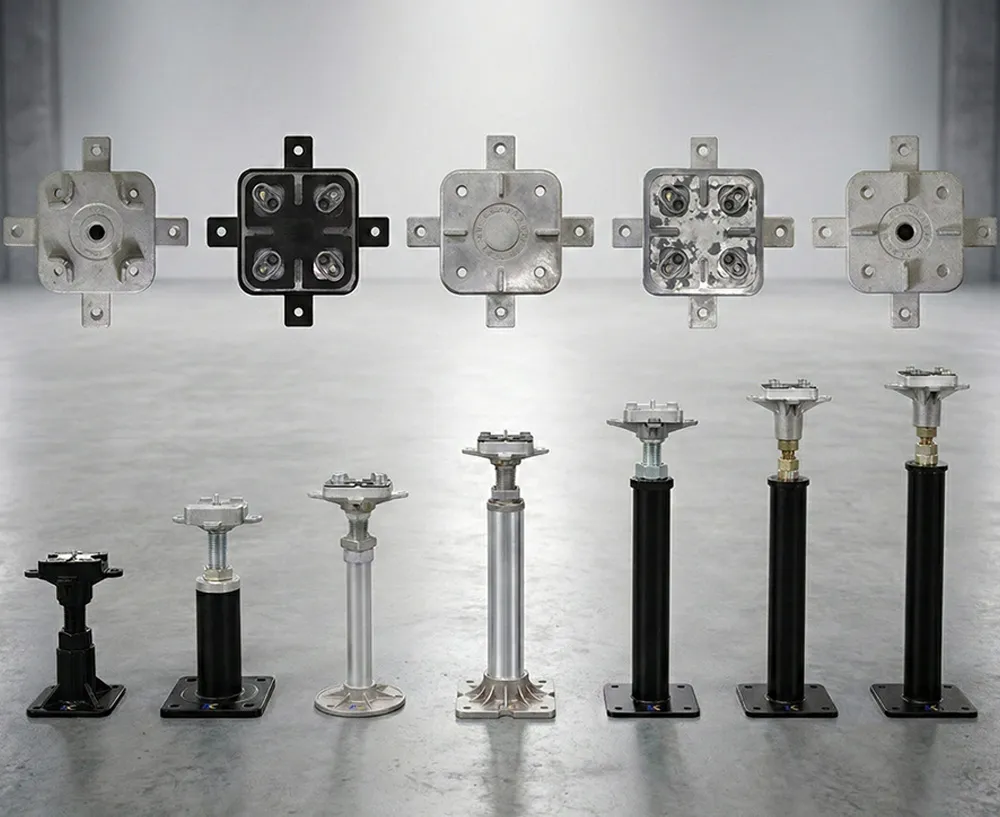

| Type | FFH Height | Size (mm) | Axial Load | Finish | |
|---|---|---|---|---|---|
| Standard (Al.) |
160~600mm | Al. Base plate : Φ113.6 | Al. Bolt : 7/8" | 4,100 kgf (9,000 lbs) |
• Bare, • E-coat • Epoxy powder coat |
| Al. Tube : Φ28.4 | Al. Head : 116 x 116 x 41.5 | ||||
| Heavy Duty (Al.) |
300~1000mm | Al. Base plate : 150 x 150 | Al. Bolt : 1" | 5,800 kgf (12,500 lbs) |
|
| Al. Tube : Φ50.8 | Al. Head : 116 x 116 x 41.5 | ||||
| Standard (Steel) |
300~1000mm | Steel Base plate : 130 x 130 x 3.2t | Steel Bolt : M16 | 7,500 kgf (16,500 lbs) |
|
| Steel Tube : Φ48 | Steel Head : 116 x 116 x 90 | ||||
| Heavy Duty (Steel) |
300~1500mm | Steel Base plate : 150 x 150 x 3.2t | Steel Bolt : M16 | 8,200 kgf (18,000 lbs) |
|
| Steel Tube : Φ60.5 | Steel Head : 116 x 116 x 90 | ||||
Lateral Support Stringer System
(Stringers System)
The aluminum stringers are available in 2 sizes to ensure seamless compatibility with Raised Access Floor systems of both 24-inch and 600 mm dimensions

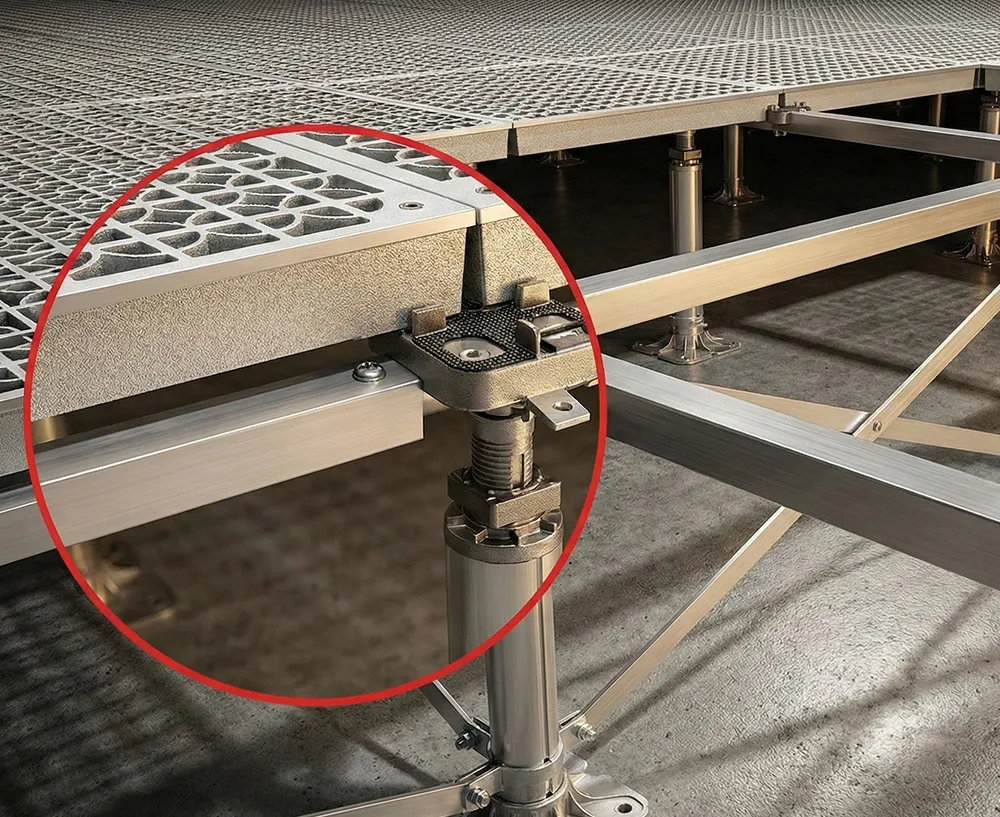

This component significantly enhances overall structural strength and lateral load resistance, especially during the rolling or moving of heavy machinery and equipment into the area. It is available in 3 surface finish options: Bare Aluminum, Electrocoating, and Epoxy Powder Coating.
Optional Products for Raised Floor Systems
Supplementary solutions for enhanced stability and efficient building system management
Enhances resistance against lateral forces. Installed in high-risk areas or along the building's expansion joints

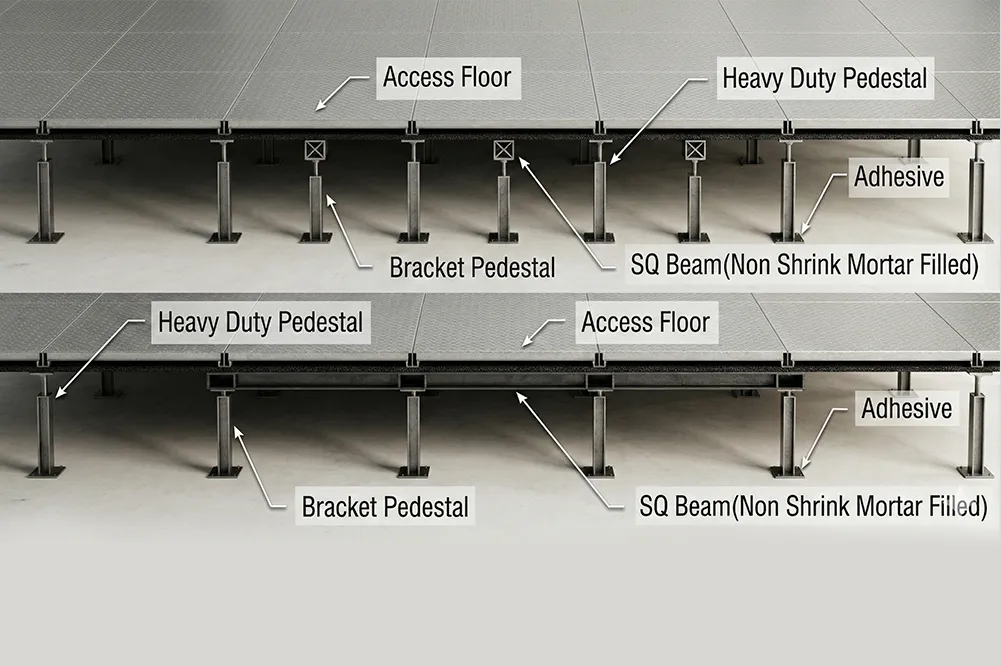

Increases load-bearing capacity for areas designated for heavy machinery placement, without the need to dismantle the existing structure

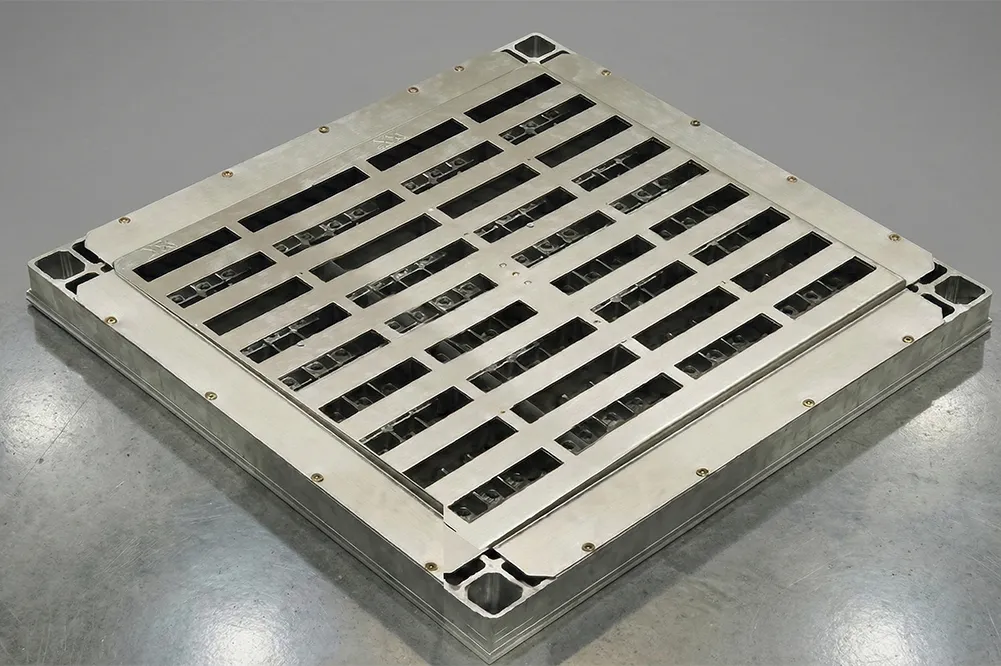

Installed beneath grating panels to control the direction and volume of airflow in Cleanrooms and Data Centers

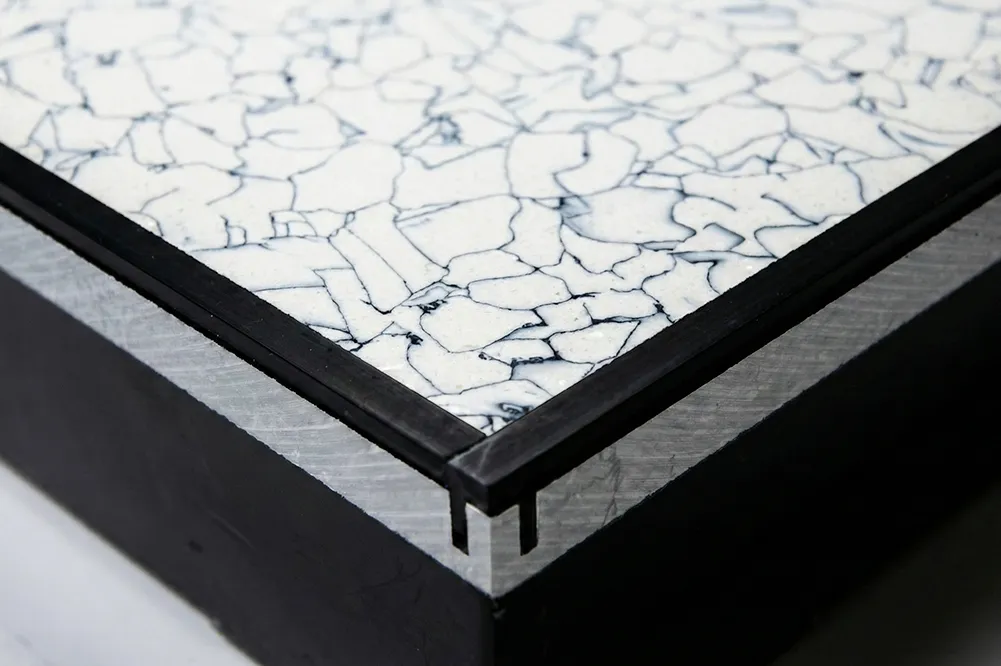

PVC edge trim to prevent slipping and protect the surface covering material from peeling or delamination
FAQ
Aluminum vs. Steel Pedestals: Which should I choose?
Aluminum structures are lightweight, rust-proof, and non-dusting. Ideally suited for high-standard Cleanrooms. Steel pedestals excel in heavy-duty load-bearing and cost-effectiveness. Perfect for Server rooms, Data Centers, or general office buildings.
Is Seismic Bracing necessary for raised floor installations?
Additional bracing is recommended for Finished Floor Heights (FFH) exceeding 600 mm. Also recommended for vibration-heavy machinery or buildings in seismic-prone areas. To ensure maximum safety and structural stability.
